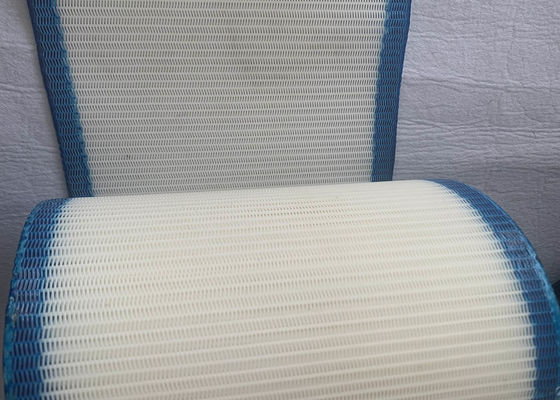

Food-grade frozen plastic polyester polyoxymethylene modular mesh spiral link tower conveyor mesh flat drive dryer belt
Polyester Mesh: High-Performance Industrial Solution Our polyester mesh is a premium woven fabric engineered from high-strength polyester filaments, designed for diverse industrial applications. With excellent tensile strength, abrasion resistance, and dimensional stability, it maintains structural integrity under high tension and repeated use. Featuring corrosion resistance, it performs reliably in humid, chemical, or high-temperature environments (up to 150°C continuous use), outperforming traditional metal or nylon meshes. The uniform mesh opening (ranging from 10μm to 50mm) ensures consistent filtration, screening, or conveying efficiency. Widely used in water treatment (filtering impurities), mining (classifying minerals), printing (screen printing), and food processing (dewatering), it offers long service life and low maintenance costs. Customizable in mesh count, thickness, and width, our polyester mesh meets specific needs of various industries, delivering cost-effective and durable performance.
Introduction of belt details:
Polyester press filter screen belt are characterized by high abrasion resistance and very good dimensional stability under machine load. The fabrics have a special construction so that the pressed liquid can drain and at the same time the filter cake is not pushed through the fabric. Individual fabrics differ in the speed of drainage, the size of the holes in the fabric, the smoothness of the surface for easy separation of the filter cake, the resistance to abrasion, etc.
PFM screen conveyor belts are also used for further drying applications, such as drying of sewage sludge, nonwoven fabrics, wood shavings and food.
According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half are suitable for drying papers below 70g.
4-shed double layer fabric is suitable for drying papers above 70g.
Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.
24504/22504/20654/4106 for multi-cylinder paper machine, due to higher permeability, generally used in the latter part of the paper machine dryer, the production of paper more than 70 grams 4106-2/18688/16904 generally used for multi-cylinder paper machine, the first three groups of paper drying, high-grade paper.
Polyester Filter Screen For Tailings Disposal
Polyester filter screen is extensively used for transportation and filtration or separation applications for tailings disposal, fruits, vegetables, foodstuff, waste water treatment, in municipal plants, private plants, etc.
| Weaving Type |
Model |
Thread Diameter |
Density(No.s/cm) |
Strength ((N/cm) |
Air Permeability (m3/m2h) |
| (mm) |
| Warp |
Weft |
Warp |
Weft |
| 2-shed plain weaving |
05802 |
0.75 |
0.8 |
4.7-5 |
4.8-5 |
940 |
20000 |
| 05102 |
1 |
1 |
4.7-5.2 |
4.3-5 |
1600 |
15000 |
| 06702 |
0.7 |
0.7 |
8 |
7 |
1600 |
11000 |
| 07102 |
0.7 |
1 |
6.6-7 |
4.3-4.6 |
1100 |
15000 |
| 08552 |
0.55 |
0.55 |
7.5-8 |
8.5-9 |
850 |
850-6500 |
| 09452 |
0.45 |
0.45 |
10 |
8.6 |
1600 |
16000 |
| 09502 |
0.5 |
0.5 |
8.5-9 |
10-10.5 |
750 |
10000 |
| 12502 |
0.5 |
0.5 |
13.5 |
8.5 |
1800 |
6500 |
| 3shed plain weaving |
8603 |
0.5 |
0.6 |
10 |
9 |
1600 |
14000 |
| 8903 |
0.9 |
0.9 |
7.8-8 |
5-5.5 |
2100 |
7500-8500 |
| 7803 |
0.7 |
0.8 |
8 |
8 |
1600 |
10000 |
| 20353 |
0.3 |
0.35 |
22 |
14.5 |
1200 |
13000 |
Polyester Mesh Belt Data Sheet
| Product Name |
Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size |
Small Medium Large Loop |
| Material |
100% Polyester |
| Applicable Industries |
Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color |
Blue , white and Red |
| Certificate |
ISO9001 |
| Type |
Polyester Dryer Belt
Polyester Sprial Press Filter Belt
|
| Packaging |
Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
Our spiral dryer fabric is acid-resistant.
Alkali resistance; Wear resistance Long thermal stability and service life, etc.
It is several times that of woven felt. Canvas and other dry fabrics.
2. The fabric surface of our spiral dryer is very smooth, and it also has good air permeability and burst strength.
High heat transfer efficiency. So it can save energy for our customers.
3. Easy to install, with no mold at the seams. The strength can reach 100% of that of the fabric.
Polyester Mesh Belt Packing detail
1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement
-
